Decision-making Support Systems Using Case-based Reasoning for Construction Project Delivery Method Selection: Focused on the Road Construction Projects in Korea

2.1. Selection of the Construction Project Delivery Method

The selection of the project delivery method constitutes a crucial decision point when establishing a plan for a construction project because the performance of the construction project depends on the selected project delivery method [6]. Reflecting the importance of the delivery method, the past research on construction project delivery methods focused on establishing selection criteria and procedures. A previous study derived weights for different selection criteria for project delivery methods using the analytic network process (ANP) method, and proposed a project delivery method selection model consisting of four phases: the preparation, evaluation, decision-making, and action phases [6]. Other studies include one that analyzed the characteristics of large public building projects and identified the factors affecting the project delivery system selection criteria [7], a study that proposed a link between project delivery method selection models and performance evaluation models [8], and a study that analyzed and identified the factors affecting the project delivery method selection criteria and examined the significance of each reference factor [1, 9]. The project delivery method selection criteria proposed by previous studies through the analysis of such factors include quality, construction period, cost, complexity, project scale, owner’s experience, innovative technologies, and uncertainty. Likewise, the past studies on the selection of the project delivery method mainly dealt with the evaluation methods and criteria required for selecting the project delivery method to be used (Table 1).

Despite the huge influence of the selected delivery method, however, on the performance of a construction project, there have been few studies on the methods of utilizing the construction project performance in the process of the project delivery method selection. The previous studies related to project performance include a study that analyzed project delivery methods and proposed a new delivery method called “performance delivery method” [10], and a study that compared the performances of different project delivery methods [11]. These studies, however, did not deal with the utilization of the construction project performance in the selection of the project delivery method. In this regard, this paper seeks to present a decision-making system for project delivery method selection utilizing the construction project performance in the early stage of the project.

2.2. Data Mining Using Artificial Intelligence Technique

Using the evaluation results of the performance of a construction method after project delivery method selection requires an analysis of the accumulated data. Most of the previous studies on the selection of the project delivery method in the construction sector analyzed the accumulated data using traditional statistical techniques. Such methodology, however, is limited in that the results will vary slightly depending on how the statistical hypotheses are defined, such as the generalizations of the required data [12]. Conversely, relatively objective values can be derived by analyzing the data using the artificial intelligence (AI) technique through data mining, because this method derives analysis results based on the accumulated data through machine learning, without resorting to statistical hypotheses. Data mining is an effective technique capable of deriving hidden information from a vast amount of data using the key elements of machine learning. Data mining tools allow researchers to predict future trends based on the accumulated data, and support the making of practical business decisions [13].

CBR is an AI technique that supports effective decision-making by identifying similar examples based on past data. CBR is designed to address new issues using information and knowledge by referring to similar past cases. CBR is based on the psychological theory of human reasoning, which focuses on human psychology solving current issues based on similar past experiences [14]. The CBR technique has found application in a wide range of areas. The past research on the CBR technique covered evaluation models that support bid decision-making [5], project delivery method selection [4], or decision-making on construction contracts [3]. Other studies include a study on the CBR model that predicts the possible defect risks during construction [15], a study on the prediction of construction project costs by applying the CBR technique [16], and a study on the use of the CBR model for predicting the project period of building construction projects [17]. Through these studies, the CBR technique found application across the construction industry at large. One of the most crucial procedures for the CBR technique is determining the weight of each of the factors used to calculate the degree of similarity. Most of the studies that applied the CBR technique in a construction project, however, posed limitations caused by statistical assumptions due to the application of the traditional statistical techniques in the calculation of the degree of similarity (Table 2), but these limitations can be overcome by utilizing the weight calculation method among the existing data-mining techniques.

The AI techniques based on data mining that can calculate the weights of the factors are the artificial neural network (ANN) and decision tree (DT) analysis techniques. DT analysis offers the benefit of deriving results through machine learning using a relatively small amount of data [18, 19]. The DT analysis technique involves the construction of a decision tree based on the information gain of each attribute of past datasets, without resorting to statistical hypotheses. Therefore, if the information gain is set as the weight of the similarity factor by utilizing it in the CBR technique, more objective results can be obtained.

In light of the above, this study sought to establish a decision-making support system that supports project delivery method selection using the analysis results derived using the two AI techniques DT analysis and CBR, unlike the previous studies that used the traditional statistical techniques.

3.1. Case-based Reasoning for Selecting the Construction Project Delivery Method

The CBR framework proposed in this study is largely composed of three stages: (1) Case Representation; (2) Retrieval of Cases; and (3) Case Adaptation. First, the construction project post-evaluation reports of previously carried out construction projects are collected from the past-project post-evaluation report pool. Second, in the case representation stage, the attribute weights for similarity evaluation are derived from the dataset collected through information gain analysis (DT analysis), and the effect of the project delivery method decision on the project performance is derived and summarized in each case. Third, for the case retrieval stage, the similar projects are retrieved from the collected cases, and the effects of the project delivery methods and the decisions thereon for similar construction projects on the project performance are used to select a project delivery method. Finally, a post-evaluation of the construction project is conducted, and the evaluation report is stored in the past-project post-evaluation report pool. The CBR system proposed in this study was designed to support the decision-making at the project delivery method stage through the procedure shown in Fig. (2).

3.2. Data Collection

The construction project post-evaluation reports were analyzed and utilized to establish the CBR system for supporting the project delivery method selection for large-scale construction projects. The construction project post-evaluation is a scheme designed to evaluate the performance of a public construction project, and to help improve the efficiency of public construction projects by using the evaluation results for other similar projects in the future. In South Korea, the performance data, project delivery method, and project information of large-scale construction projects with a total construction cost of more than 30 billion won are stored in the Construction CALS Portal System. The Construction CALS Portal System is being operated in accordance with the MLIT’s “Construction Work Post-Evaluation Enforcement Guidelines” to make it convenient for public clients to implement their construction projects in terms of the construction project post-evaluation reports and others. Summaries of the projects and their post-completion/operation performance compared with the project plans can be collected from among the construction project post-evaluation reports stored in the system. The construction project post-evaluation reports on 146 road construction cases, including bridges and tunnels, were collected and used as data for building a decision-making support system for project delivery method selection.

3.3. Selecting the Factors to be Considered for Project Delivery Method Selection

3.3.2. Step 2: Survey on the Quantitative Factors Affecting the Project Delivery Method Selection

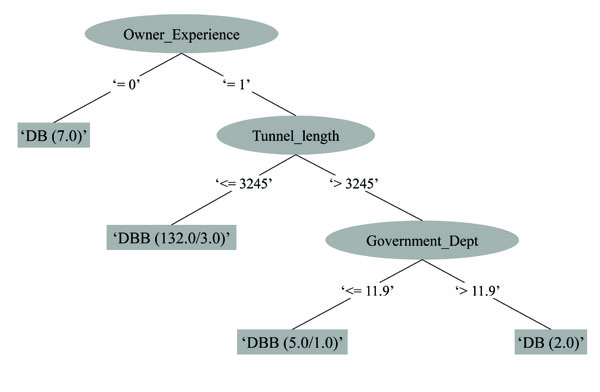

A total of 146 road construction cases collected through the construction project post-evaluation reports were analyzed and organized with the 13 quantitative factors affecting road construction project delivery method selection analyzed previously. The effect of each factor on the project delivery method selection was analyzed by applying DT analysis, an AI technique, to the organized dataset. The DT algorithm includes ID3, C4.5, C5.0, CART, and more, and a DT was developed through each algorithm [21]. From these, the C5.0 algorithm was applied because it can deal with different types of data, has a relatively fast processing speed, and can perform an analysis even when a few values may be missing among the factors of the data factor [22].

The C5.0 algorithm was developed by Quinlan, and the DT was configured based on the concept of entropy. It indicates the amount of information that the specific attribute (factor) has, and the structure of the variable for each branch of the DT. The amount of information that the attribute (factor) of the dataset has is calculated based on the information gain theory, and is represented by the following formula [21]. The Gain (X, A) value by the formula is obtained by subtracting the entropy values of the subsets of attribute A from the entropy of the entire dataset, and it is the expected reduction in entropy due to the sorting of A. This represents the extent to which the attribute A can gain information, and as this value is higher, it is considered to be located higher on the DT. Fig. (3) is a DT in which the dataset collected in this study is analyzed using the WEKA 3.6 program, and shows that high Gain(X, A) values such as those of “owner’s experience” and “length of tunnel” are located higher on the tree.

(1)

X is a sample of training examples

X_v is samples of attribute A’s training examples

p_i is the proportion of examples in X

In other words, the Gain(X, A) value can be interpreted as the degree to which attribute A has an effect on the target value or weight. Accordingly, in this study, the weights of the quantitative criteria affecting the project delivery method selection through the preceding correlation analysis were calculated by a C5.0 algorithm of the DT analysis after setting the road construction project delivery method as the target value. To obtain the weight of the attribute (factor), the WEKA 3.6 program was used, and the results are shown in Table 5. The analysis results show that the three quantitative factors that have the greatest effects on the project delivery method selection are “owners’ experience,” “length of tunnel,” and “project cost.” “Volume of traffic,” length of road,” “construction business survey index,” “number of interchanges & intersections,” “real GDP growth rate,” and “project duration” are the factors that were shown to have no effect on the project delivery method selection as their Gain(X, A) value is 0.

Table 5.

Factors (Attributes)	Information Gain Values	Rank
Owner’s Experience	0.18894	1
Length of Tunnel	0.15863	2
Project Cost	0.09241	3
Length of Bridge	0.08632	4
Type of Road	0.07362	5
Government Debt	0.04866	6
Project Location	0.00669	7
Volume of Traffic	0	-
Length of Road	0	-
Construction Business Survey Index	0	-
The number of Interchange & Intersection	0	-
Real GDP Growth Rate	0	-
Project Duration	0	-

3.4. Calculation of the Project Performance Evaluation Score

In establishing the CBR system, if the performance resulting from the selected project delivery method can be seen as result values in addition to the retrieval of the project delivery method of similar cases, the decision-making regarding the project delivery method can be effectively supported. To implement this, the performance for each case was derived through the construction project post-evaluation reports analyzed previously. The effects of the project delivery method decision tasks on the project performance results for each case were analyzed for indexation. The project performance that can be derived from the construction project post-evaluation reports includes the rate of increase and decrease compared to the plan of the project costs, the project duration and design duration, the B/C ratio, the number of reconstruction works, the number of defects, and the rate of increase or decrease compared to that of the original plan. Of these, the number of reconstruction works and defects delays the construction project duration and is included in the performance of the increase and decrease rate of the project duration compared to the plan. Therefore, it was not taken into account. Furthermore, as the rate of traffic increase and decrease compared to the original plan is a performance included in the B/C ratio, it was not considered in this study. In other words, the performance of the construction project was defined by four factors: the project cost achievements, the project duration and design duration compared to the plans, and the B/C ratio. These data were then analyzed and organized.

After the foregoing, the influences of the project delivery method decision tasks on the four performance factors were analyzed through an analytic hierarchy process (AHP). AHP analysis is utilized to derive the information preferred by experts through a pair-wise comparison of the evaluation factors or alternatives through a survey. The AHP survey was conducted with a total of 21 construction experts, and among the survey results, only the results determined to have consistency - as when the consistency ratio (CR) value was less than 0.1 - were used in the analysis [23]. The influences of the delivery method decision tasks on the four performance factors of the construction project through the AHP analysis are summarized in Table 6. The AHP analysis results showed that the project delivery method decision tasks had the largest influence on the “construction project cost achievement,” with a 0.414 influence value, followed by the B/C ratio, construction project duration achievement, and design duration achievement.

Of the four performance factors of the construction project, the construction project with a larger performance value of the factor that has a higher influence due to the decision on the project delivery method is considered a case project where the delivery method decision tasks have a good effect on the performance of the construction project. Considering the ratios of the four performance factors of each construction project case and the influences analyzed in Table 6, the effects of the project delivery method decision tasks on the performance of the construction projects can be represented as indices. The index is defined as the Effectiveness of Selecting the project Delivery method for the project Performance Index (ESDPI), and ESDPI 100 refers to the effectiveness for the performance if the influences of the project delivery method decision tasks on the performance factors are the same. Based on this, as the ratio of the four performance values of each construction project changes, the ESDPI changes as well, and the larger the index is, the greater the effect of the project delivery method decision on the performance. The effect, therefore, of the project delivery method decision for each case on the performance can be measured quantitatively through the index (ESDPI). Also, it can be utilized as values to be considered in selecting the project delivery method.

(2)

l_n = Influence values of selecting the project delivery method to the performance factors

x_n= Construction project performance achievements

(3)

I₁ = Influence value of selecting the project delivery method to the project cost performance

I₂ = Influence value of selecting the project delivery method to the project duration performance

I₃ = Influence value of selecting the project delivery method to the project design duration performance

I₄= Influence value of selecting the project delivery method to the project B/C ratio

4.1. Case Retrieval

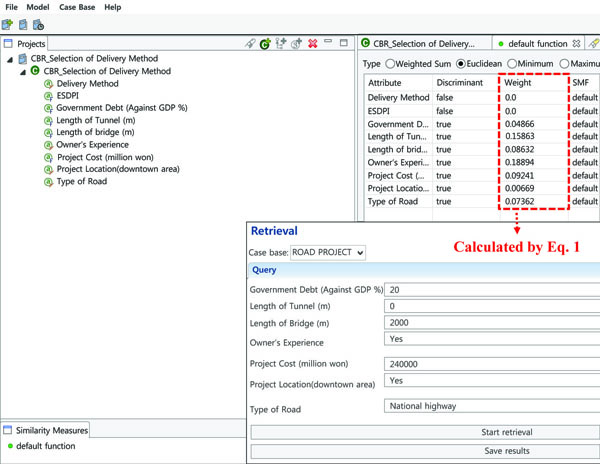

The CBR system was constructed with 146 road construction cases analyzed previously to create a decision-making support system for project delivery method selection with focus on road construction. The value derived through the DT analysis was applied with respect to the attributes and weights of the attributes for similarity calculation (Table 7). The higher the weights allocated to each attribute (factor) were, the greater the influence on the similarity. The information input regarding the current construction project by attribute (factor) in Table 7, and retrieval, make it possible to find the project delivery methods of past construction project cases that are most similar to the current construction project in terms of the project delivery method used. The construction project cases of the established dataset have ESDPI values selected through Eq. 3 in section 3.4, respectively, and therefore, two types of information, the selected project delivery method and ESDPI, can be obtained in the retrieved case through the devised CBR system. In the process of the decision-making for the construction project delivery method selection, if the CBR system proposed in this study is applied, not only the project delivery method derived through retrieval but also the ESDPI can be taken into consideration. Thus, it may be able to support effective decision-making.

4.2. Case Adaptation with Illustrative Examples

In the CBR system that was constructed, the project delivery method and ESDPI derived through the retrieval provides implications different from those of previous studies. This is because unlike in the previous studies that selected the project delivery method to be used considering only the project information at the time that such selection was to be made, the proposed decision-making support system based on CBR can be made considering the effects of the project delivery method decision tasks on the performance of the future project. The CBR system dataset for road construction project delivery method selection established in this study was tested using the myCBR program Fig. (4). Weight of Attributes indicated in Fig. (4) is calculated by Eq. 1. Table 8 shows the results of the input test data to the attributes of CBR for retrieval. The similar case was retrieved from the CBR system that was established to select the project delivery method to be applied to this project with any of the project where “owner’s experience” is “Yes,” “length of tunnel” is 0 m, “project cost” is 240 billion won, “length of bridge” is 2,000 m, “type of road” is national highway, “government debt” is 20%, and “project location” to the downtown area is “Yes” for the exemplified values. As the cases with the highest degree of similarity that were derived through the retrieval, however, such as Road Project 74 and Road Project 85, have nearly the same degree of similarity (0.95), it is difficult to select between the two project delivery methods (DB and DBB) based only on the similarity. If only the project delivery method results are provided when different project delivery methods are applied to cases with similarities, the resultant value of the CBR system becomes useless because it is impossible to know which project delivery method is most advantageous. The CBR system proposed in this study can support the decision-making for the project delivery method selection in this situation by providing an ESDPI (calculated by Eq. 3.). That is, in the case of Table 8, through a comparison of the ESDPI values of the two cases with the same degree of similarity, DBB, which is the project delivery method of Road Project 85, with a larger ESDPI between DB and DBB, can be determined, and therefore, the CBR system established through this study can support the effective project delivery method selection decisions.
