Thermo-mechanical Characterization of Insulating Bio-plasters Containing Recycled Volcanic Pyroclasts

1. INTRODUCTION

Eco-design and energy-efficiency are current concepts of fundamental importance that highlight the need to find new building materials that are environmentally friendly and lead to save non-renewable resources of energy consumption [1]. In recent years, the idea of "sustainability" applied to the building design has encouraged many researchers to propose novel sustainable construction materials characterized by a reduced environmental impact, especially in terms of the amount of greenhouse gas emissions [2]. In particular, the development of new thermal and acoustic insulating products by using natural or recycled waste materials reduced the energy demand for space heating, the installed power of air-conditioning systems and consequently, the total energy cost [3]. The current European legislation pertaining to waste materials, which is the Directive 2008/98/EC on waste (Waste Framework Directive), obliges the member states to recycle at least 70% of their nonhazardous construction and demolition wastes as raw materials by 2020. Waste legislation and policy of the EU member states shall apply following the waste management hierarchy [4] shown in (Fig. 1).

Taking into account that the quantity of the waste being derived from construction and demolition is the highest in EU, estimated to be 25-30% of all produced wastes [4], and that the current recycling rate is approximately 46% [6, 7], it is imperative to identify new ways to use demolitions wastes as recycled products [8]. Petri Sormunen proposed a literature review concerning the opportunities of using recycled construction and demolition waste in composite manufacturing. Recycled wood, paper, cardboard, metal, glass, and ceramics were investigated as raw components for composite materials [9]. Some studies focus on thermal and acoustic insulation properties of mixtures and insulating panels with the purpose of limiting the environmental impact [10, 11]. Recycled concrete aggregates and coal bottom ash aggregates have been used in partial replacement of natural crushed limestone aggregate on the pervious concrete [12]. The mechanical properties, thermal conductivity and sound absorption feature, were significantly improved compared to those of pervious concretes containing only natural aggregates.

In recent years, the recycling policies have also prompted the scientific community to study the recycling possibilities of many other types of waste. Buratti et al. [13], investigated the thermal, acoustic, and environmental performances of recycled waste panels consisting of rice husk produced by gluing and pressing the raw material. The recycling of synthetic post-industrial textiles waste, constituted by a mixture of nylon, spandex and polyurethane in the production of novel thermal insulation panels, is the topic of the paper [14]. An innovative mineral fiber panel for building insulation has been proposed by Moretti et al. [15], with a very low thermal conductivity, within the range of 0.031-0.034 W/mK, depending on the density. In rubber granules from used tires, high-density fiberboard flooring sawdust and fresh high-density polyethylene pellets were blended to produce perforated composite panels having sound-absorbing properties [16]. Lightweight tiles were developed by Cetin et al. [17], starting from mining tailings, like the waste generated by the mining of boron-rich minerals and basalt rock, and recycled glasses like common soda-lime glass and pharmaceutical boro-silicate glass. In recycled printing circuit boards, plastic materials have been used for producing thermo-insulating panels [18]. The physical-mechanical properties of a lightweight construction material composed of plaster, dune sand and Expanded Polystyrene Beads (EPS) are investigated [19]. A considerable number of studies about the possibility of incorporating waste from the most varied sources in concrete and pavement mixtures have been conducted in the past decade by Siddique and coauthors (see for instance the latest papers) [20-24]. Volcanic Ash (VA) is another material frequently used in concrete-like composites. The use of VA as a pozzolanic material has caught the attention of the scientific community because it allows to produce green and economical mortar, reducing environmental pollution and decreasing the used quantity of Ordinary Portland Cement (OPC) [25-28]. Many research works on blended cements containing VA are focused on the description of specific properties of cement paste, mortar, and concrete [29-32]. Bahadori presented an experimental study where three types of natural pozzolans (VA), available in Iran, were used for the stabilization of marl soil. Another study investigated the potential of using natural and [33], artificial pozzolans for the stabilisation of Urmia Lake peat [34].

However, the pozzolanic property varies with the origin of the VA, the mode of formation, the geographical region and the source [35]. In this context, studies regarding the opportunities to reutilize VA coming from the Etna volcano are of great interest. Indeed, a huge amount of ash repeatedly cover the surrounding area causing serious road and air traffic accidents, difficulties in the agricultural sector as well as human health problems. Subsequent to the eruptions, the pyroclastic products are removed by the local municipalities from public spaces. Thus, they, being classified as urban waste, have to be disposed of. The persistence and duration of the eruptive phenomena have become a challenging problem over the years, because it implies high costs; and from the environmental point of view, the occupation of huge landfill spaces. So, it is very important to prove that the waste code can be permanently modified, placing the material in a not-hazardous category so that it can be reused like recycled resources. In fact, the physical and mechanical properties of this recycled volcanic product remain substantially unchanged with respect to the virgin material.

Some recent studies are focused on the characterization of the rock [36, 37] and on the reuse of Etna eruptive products in the field of mortar and concrete production [38-40]. Thus an ongoing challenge for marketers of recyclable VA is to expand end-user products and material markets in different areas of civil engineering [41].

This study investigates the possibility of using the eruptive products of volcano Etna in the production of bio plasters, as an alternative to their disposal as waste. The goal is therefore the realization of a sustainable product accompanied by a reduction of the environmental impact. Indeed, the use of recycled material does not only allow to reduce the depletion of natural resources but also diminishes the amount of the energy necessary to extract, transform and transport the material to the point of use or application, that is, the so-called Embodied Energy (EE). In particular, the attention is focused on the thermal properties of the final product obtained, due to the porous structure of the pyroclasts. The requirements in order to classify the plastering mortar as an insulating, or simply, a lightened material was carried out through experimental measurements of strength and thermal conductivity.

2. MATERIALS AND METHODS

The experimental research studies two different types of bio-plasters, obtained by combining a natural binder with recycled aggregates derived from the volcanic pyroclastic waste produced during the eruptions of volcano Etna, being the highest and the most active volcano of Europe.

The first type of mixture, denoted as NHL, is characterized by a natural hydraulic lime I.PRO Calix NHL 3.5 by Italcementi S.p.A.; the binder of the second type of mixture, denoted as CH-CEM, is calcium hydroxide CL90-S by SACED S.p.A. combined with a commercial Portland-limestone blended cement, type CEM II/B-LL 32.5 R by Colacem S.p.A. An Air Entraining Agent (AEA) in two different volume ratio with respect to the dry mixture (0.05% 0.1%) was added to the mixture CH-CEM to increase the porosity. Moreover, a breathable resin (R) in the ratio of 1% of the binder was added in the mixture containing 0.1% of AEA. Based on the content of the additives AEA and R, the designed CH-CEM mixtures were labelled as CH-CEM-0.05-0, CH-CEM-0.1-0, CH-CEM-0.1-1. In the case of the NHL mixture, no additive was used since the binder has intrinsically very low mechanical strength.

The aggregates, taken from landfill depots, were used as they stand, with-out any treatment or grain size reduction, to maintain the virgin porosity. The pyroclastic waste can be classified as an insulator of mineral origin, according to the UNI EN ISO 10456. The density was between 0.57 kg/m³ and 1.81 kg/m³, for the material passing the sieve 4.76 mm and 0.001 mm, respectively.

2.1. Mix Design

In order to obtain a composite with good mechanical strength, the pro-portion of the constituents and an adequate particle size distribution are of fundamental importance. The Fuller-Thompson ideal gradation curve is usually used to achieve high-density composites. However, the main purpose of this study is the design of a porous medium, showing thermal insulating properties. Therefore, the mix design was made by choosing a grain size assortment which increases the intergranular voids, and then the porosity, due to a higher percentage of coarse aggregates with respect to the theoretical fuller value (Fig. 2).

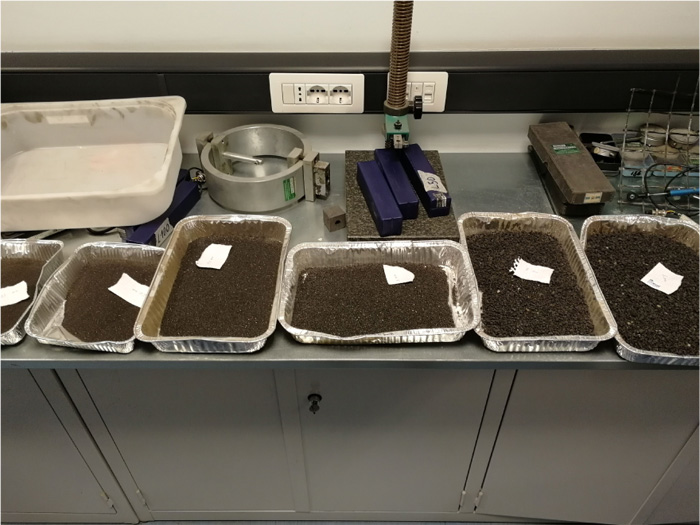

Fig. (3) shows the grain assortment of the raw material after the particle size analysis.

the left to the right, the fractions passing the sieve are 0.25, 0.5, 1.0, and 2.0 mm, respectively.

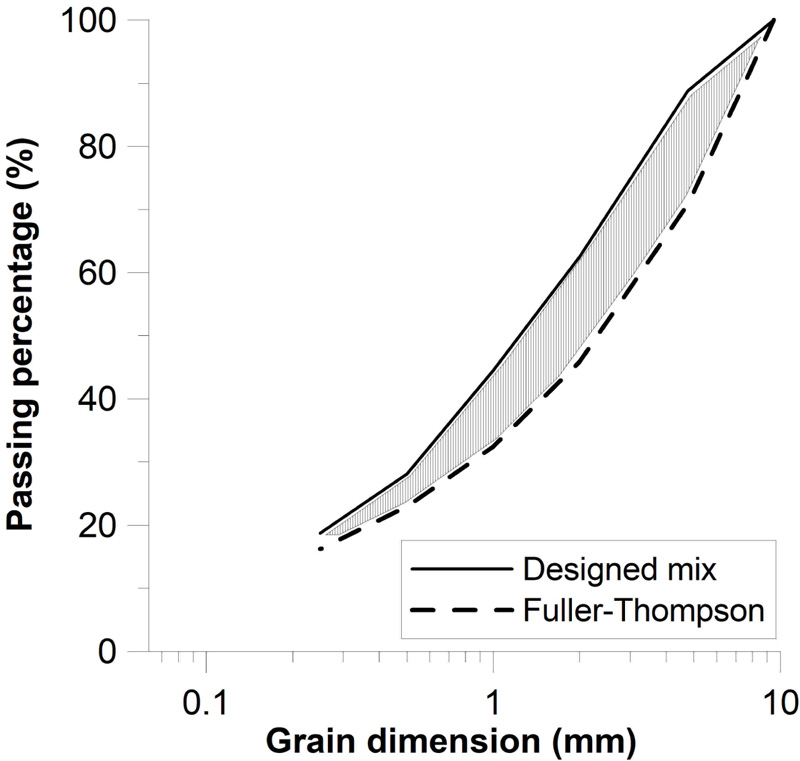

All the blends have the same volume ratio among the aggregates, so that all are characterised by the same granulometric composition given in Fig. (2)

Consequently, all the mixtures contain:

• Coarse volcanic pyroclastic aggregates, with a diameter 2 ≤ d < 9.5 mm

• Fine volcanic pyroclastic aggregates, with a diameter 0.25 ≤ d < 2 mm;

• Very fine aggregates, consisting of aggregates such as carbonate and pozzolan with a diameter d < 0.25 mm.

The finer fraction was added to facilitate the sliding at the interface between the larger grains and, therefore, to confer greater workability. From preliminary tests, in fact, in the absence of the very fine fraction, the workability of the mixture was not acceptable. The aggregates were used in the dry state. The water content also includes the part needed to wet the aggregates.

Table 1 reports the composition of NHL mixture per liter of the mixture. The binders, fine aggregates and the coarse aggregate are in the ratio of 1:1.97:1.8.

Table 1.

Mixture NHL	-
constituent	(g)
I.PRO Calix NHL 3.5	232.9
coarse aggregate	450.7
fine aggregate	525.8
very fine aggregates	225.3
water	375.6

Mixture CH-CEM contains binders, fine aggregates, and coarse aggregates in the ratio 1:2.25:2.05. Table 2 shows the composition per liter of mixture CH-CEM .

3. MECHANICAL CHARACTERIZATION

3.1. Laboratory Setup and Measurements

In order to determine the main physical and mechanical characteristics of the above mentioned mixtures, different experimental tests have been carried out at the Official Materials Testing Laboratory of the Department of Civil Engineering and Architecture of the University of Catania. The tests were carried out both on fresh mortar and on hardened mortar after 28 days of curing. For each type of mixture, 6 prismatic samples of 160 mm x 40 mm x 40 mm size were packaged.

Table 2.

Mixture CH-CEM	-
constituent	(g)
Calcium Hydroxide CL90-S	131.5
CEM II/B-LL 32.5 R	124.2
coarse aggregate	438.5
fine aggregate	511.6
very fine aggregate	219.3
water	365.4

The average flexural strength was obtained by three points bending test on 3 prismatic specimens. From the bending breakage, 6 half prismatic bars were obtained, subsequently used to measure the compressive strength. Finally, 3 half prisms were used to measure the water absorption coefficient, while the remaining 3 half prisms were used to measure the open porosity. The curing method and the time for removing the specimens from the molds were specified by the standard UNI EN 1015-11.

3.1.1. Consistency of Fresh Mortar

Consistency tests on fresh mortar were conducted according to the standard UNI EN 1015-3 through the use of a flow table. The mortar was mixed after the addition of the required amount of water to the dry mixture and introduced into a truncated cone mold, positioned in the middle of the table, in two layers compacted with 10 short strokes of the pestle. The excess mortar was removed with a spatula and the mold was slowly removed. The flow table was then lifted up 40 mm and then dropped 15 times, resulting in the spread of the mortar on the table. The expansion diameter measured the consistency of the mix. The test results are reported in Table 3.

Table 3.

Sample	Water Content (g)	Spread (mm)
CH-CEM	500	100
NHL	500	120

3.1.2. Flexural Strength

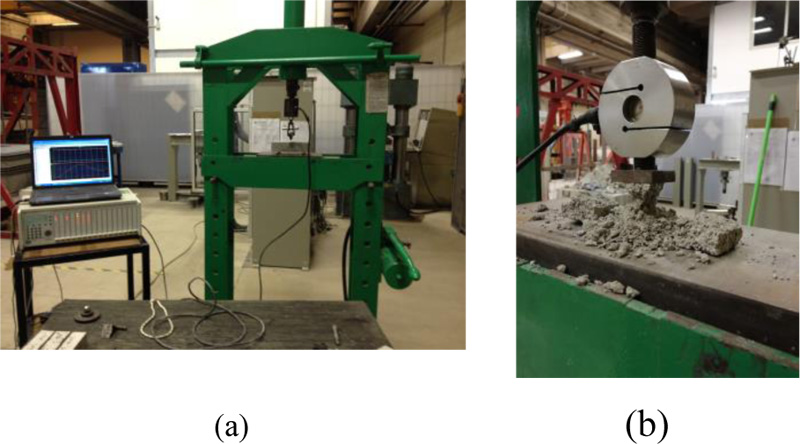

The test aims to assess the flexural strength of prismatic specimens, compliant to the requirements of UNI EN 1015-11 standard, by means of three points bending. The machine used to carry out the test was a frame containing a plate with two support rollers spaced 10 cm apart, on which the sample was positioned and centred (Fig. 4a). At the centerline, a third roller transferred the loading pressure, manually controlled by means of a hydraulic system, through a 20 kN load cell connected to an HBM data acquisition unit. The load was applied to the specimen at a constant speed of 10 N/s and respecting the test duration time required by the standard, ranging from 30 s to 90 s. From the maximum value at break F_f, the maximum strength R_f was obtained according to the simply supported beam scheme:

(1)

Where d is the dimension of the cross-section side and l the distance between the supports.

3.1.3. Compressive Strength

The uniaxial compressive strength R_c was obtained, as prescribed by the standard UNI EN 1015-11, by applying the load at a constant rate on the half prism obtained by the bending failure. The instrumental test apparatus was identical to that of the flexural test, as it is shown in Fig. (4b). The compressive strength value was obtained from the maximum applied load F_c as:

(2)

Where A is the area of the rigid plate of side d used to distribute the load.

3.1.4. Volumetric Mass Density

The volumetric mass density ρ indicates the weight per unit volume in dry conditions. It is given by the ratio of the dry weight m_dry of the porous solid and the total volume V, including the voids:

(3)

The test procedure was conducted according to the standard UNI EN 1015-10. The prismatic bars were inserted in an oven at a temperature of 100C^◦. The bars were weighed every 2 hours until the difference between two successive weightings was less than 0.2%.

3.1.5. Water Absorption Coefficient

The determination of the water absorption coefficient by capillarity of hardened mortars (C) provides information on the open porosity of the composite. Procedure and methods were set out in the standard UNI EN 1015-18. The standard provides the packaging of three prismatic specimens. Once the prepared specimens reached the proper curing stage, they were removed from the molds, broken in half and dried in a ventilated oven. Three half prisms were immersed in a tub containing water with the part of the broken surface in contact with water. The four longitudinal faces of the half prisms were sealed with a water-repellent material in order to ensure the rise of the water only along the vertical direction during the test. The height of the immersed portion varied from 5 to 10 mm. The water level was kept constant throughout the test, also preventing evaporation from the wet specimens. After 10 minutes, the specimens were removed and dried quickly with a cloth, weighed, registering the weight M1, and placed back in the tub. The same procedure was repeated after 90 min, recording the M2 value. The coefficient of water absorption by capillarity was obtained from the relation:

(4)

3.1.6. Porosity

The open porosity is the ratio of the volume of open voids that communicates with the outside, and the apparent volume of the sample. To carry out this test, the remaining half prisms of the previous test were used, whose dry weight m_dry was known. The next stage of the test consisted of totally immersing the three specimens in the tub for a time to make them completely saturated. At the end of the test, the specimens were patted with a cloth to eliminate the excess water and weighed for measuring the saturated mass m_sat. The saturation of the specimens involves a complete filling of the open voids with water, with a consequent increase in mass. From the difference between the mass of the saturated specimen and the mass of the dry specimen, it is possible to derive the mass of water that fills the volume of the voids of the specimen. Therefore, with the density of water, we can derive the volume of water which is, as previously stated, equal to the volume of open voids. From the relationship between the volume of the voids V_v and the apparent volume V_a, the porosity of the sample was obtained:

(5)

4. RESULTS OF THE MECHANICAL CHARACTERIZATION

Following the test procedures described in the previous sections, the mechanical and physical properties of the individual mixtures were evaluated.

4.1. Mechanical Characterization of the Mortar Specimens

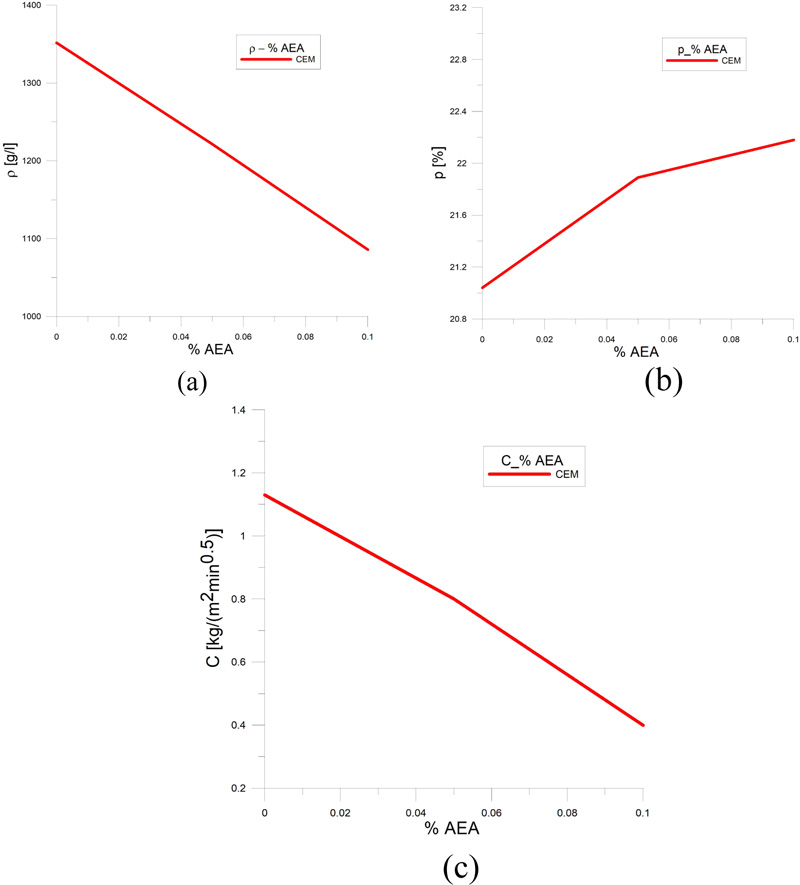

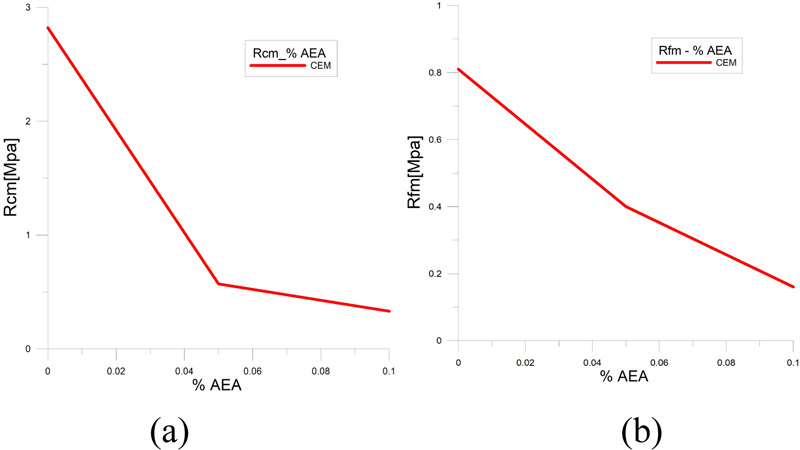

Table 4 shows the average values of density, flexural strength, compressive strength, capillary absorption coefficient, open porosity of the mixtures under examination. For the CH-CEM mixtures, (Figs. 5 and 6) depict the variation in the mechanical strength, density, porosity and water absorption as a function of the percentage of AEA, from 0 to 0.1%.

In case of CH-CEM mixtures, it is possible to observe that the compressive and flexural strength diminish, increasing the percentage of AEA with a linear gradient. Both the types of mechanical strength show a decrease in the gradient in correspondence with the percentage of AEA being 0.05%.

The compressive strength R_c shows a decrease from 2.82 to about 0.57 MPa, for AEA ranging from 0 to 0.05%, so with a reduction of about 80% and a gradient of 45%. R_c is about 0.33 MPa for AEA of 0.1% with a reduction of 42% with respect to the case of AEA equal to 0.05% and a gradient of 4.4% for AEA higher than 0.05%. The flexural strength R_f shows a decrease from 0.81 to about 0.4 MPa, for AEA ranging from 0 to 0.05%, so with a reduction of about 50% and a gradient of 8%. R_f is about 0.16 MPa for AEA of 0.1% with a reduction of 60% with respect to the case of AEA equal to 0.05% and a gradient of 5% for AEA higher than 0.05.

Table 4.

Mixture	Rf	Rc	C	p	ρ
-	(MPa)	(MPa)	(kg/(m2min0.5))	%	(g/l)
NHL	0.41	0.99	1.27	20.93	1361.98
CH-CEM	0.81	2.82	1.13	21.04	1351.56
CH-CEM-0.05-0	0.40	0.57	0.80	21.89	1221.35
CH-CEM-0.1-0	0.16	0.33	0.40	22.18	1085.94
CH-CEM-0.1-1	0.41	0.56	0.20	20.05	1171.88

With regard to the density, a continuous linear decrease was observed as the AEA increases. A similar behavior shows the water absorption, which shows a smooth variation in the gradient in correspondence with the percentage of AEA being 0.05%. Otherwise, as expected, the porosity increases with the increase of the AEA; once again a variation in the gradient is observed for AEA of 0.05%.

The presence of R in mixture CH-CEM-0.1-1 brings the value of R_c and R_f back to the values of the mixture without resin and with 0.05% of AEA (comparing CH-CEM-0.1-1 and CH-CEM-0.05-0). The mixture CH-CEM-0.1-1 presents the lowest value of the capillary water absorption coefficient, of open porosity and density.

These results can be compared with the research by Laoubi et al. [19], who determined the compressive and flexural strengths of a lightweight construction material composed of plaster as a binder and dune sand and Expanded Polystyrene Beads (EPS) as aggregates. According to the proportion and sizes of particles of EPS, the authors found a mean compressive and flexural strength of about 2.8 and 1.5 MPa respectively, in correspondence with the percentage of EPS content of 50%. Moreover, the overall results show a trend of the physical mechanical quantities in line with the framework of this research. Similar results are also reported in other studies [42, 43].

5. THERMO-PHYSICAL CHARACTERIZATION

5.1. Laboratory Setup

Different methods to measure the thermal conductivity of materials exist. Their accuracy is essential to determine which applications are suitable for, in addition to more practical considerations such as the measurement length and ease of test set up. In this study, the thermal conductivity of the different mixtures was determined through the measurements carried out using two different types of equipment: the heat flow meter NETZSCH HFM 436 Lambda and the Thermal Conductivity Meter Sensor TLS-100 produced by THERMTEST instruments. The two types of equipment were placed in a conditioned laboratory at a temperature of ±23 2^◦C and relative humidity of 50.5%, according to the test conditions required by the standard EN 12664:2002.

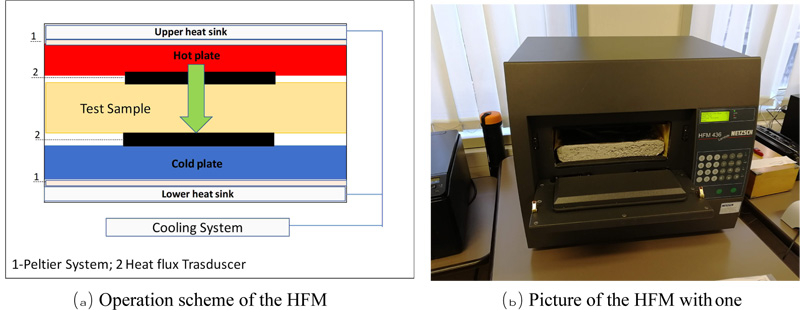

5.1.1. NETZSCH HFM 436 Lambda

The equipment consists of two plates that are heated and cooled through the thermoelectric effect. The temperature difference generates a heat flux between the top and bottom plate until a steady-state condition is observed. Thus, the thermal conductivity is calculated according to Fourier’s Law. The overall accuracy of the instrument is within 3% that remains stable for several days, thus providing excellent repeatability. The Heat Flow Meter HFM 436 Lambda is able to hold specimens with a maximum size of 300 x 300 mm and a maximum thickness of 10 cm, so the samples have to comply with this constraint. Fig. (7) shows the operation scheme and a picture of the HFM with one of the samples studied.

5.1.2. TLS-100

The Transient Line Source (TLS) meter follows the ASTM Standard D5334-14. The thermal conductivity (k) is determined using a needle probe that consists of a thin heating wire and temperature sensor sealed in a 100 or 50 mm steel tube. Thus, it has a considerable length to diameter ratio to simulate a condition of an infinitely long specimen, according to the transient line source test method. The probe is completely inserted into the sample to be tested. The power is delivered to the sample using a constant current source (q). As a consequence, the temperature rises with time. This set up results in minimal damage to the sample and allows thermal conductivity tests over a range of 0.1 to 5 W/mK. The reproducibility of the measurements is of 2% and the accuracy of 5%, with temperature within the range of -40 to 100C^◦. The thermal conductivity is obtained from an analysis of the approximately linear portion of the quasi-steady-state temperature-time response. In the calculation, the slope of the plot of the temperature versus the logarithm of time is used.

The value of k is calculated according to equation 6:

(6)

Where T₁ and T₂ are the temperatures of the plates and t₁ and t₂ two different instant times.

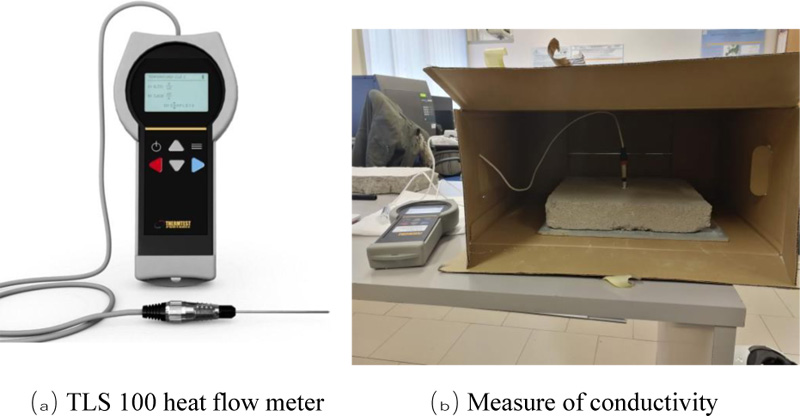

Fig. (8) shows the picture of the TLS 100 heat flow meter. It is important to highlight that such equipment allows determining the thermal conductivity in almost 10 min. Therefore, a very large set of measurements can be executed in a very short time.

The requirements for obtaining right measurements are:

The probe has to be placed at the center of the sample and in a vertical position;

The test must be started 10 min later that the probe is inserted into the sample, in such a way to reach a thermal equilibrium condition;

• Absence of thermal gradient into the ambient room.

Thus, in accordance with this last recommendation, the samples were placed within a cardboard box.

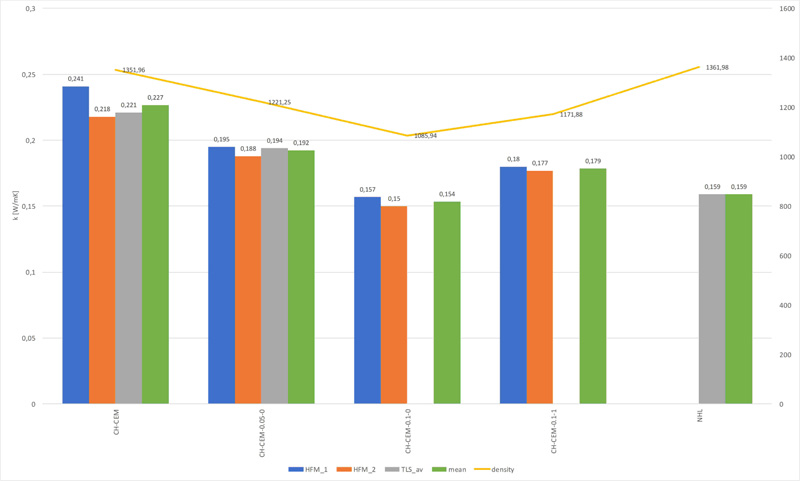

6. DISCUSSION

The results reported in the paper are part of a wider research activity carried out at the University of Catania about the reuse of the pyroclastic products of the volcano Etna. In the present paper, the physical, mechanical and thermal properties of plastering mortars containing recycled volcanic aggregates are illustrated. Although one of the objectives was to obtain a very porous material, the maximum grain diameter used in the design of the mixtures was 9.5 mm. Higher diameter fractions were not considered because in that case, the aggregates are extremely brittle, causing a strong reduction of the mechanical properties of the composite. Additives were used, aiming to improve the insulating property without significantly affecting the mechanical strength. The main results can be summarized as follows.

Mixture NHL, realized using only hydraulic lime as a binder, neither satisfies the requirements of lightened mortars nor of the insulating mortar because the value of the water absorption coefficient exceeds the limit established in standard UNI EN 998-1.

The mixtures containing Calcium Hydroxide, commercial Portland cement (CH-CEM) and an Air Entraining Agent (AEA) present a density lower than 1300 kg/m³. Then, according to standard UNI EN 998-1, they were suitable for use as lightweight plastering mortars. The mixture containing 0.1% of AEA and 1% of breathable resin (R) also satisfies the requirements for insulating mortars.

CONCLUSION

On the whole, this study is a contribution to the environmental sustainability, highlighting the possibility to produce plastering mortars by using recycled volcanic aggregates. In this way, two fundamental outcomes are achieved: the reduction in the amount of waste disposal and the application of the main pillar of the circular economy, which is the idea of recycling waste. In this context, it is very important to evaluate the Energy Embodied (EE) of the mortar containing VA compared with the traditional ones. Indeed, EE of building materials is meaningfully influenced by the kind of the constituent used, manufacturing efficiency, transportation, the durability of the materials and construction methods implemented. Future developments will be oriented to the search of new mixtures to further increase both mechanical and thermal properties, in order to recognize thermal bio/plasters as new mixtures containing recycled volcanic ashes.
