Effect of Silica Fume on the Performances of Self-compacting Repair Mortar

3.1. Deformability Test for Fresh Mortar

In this experimental investigation, we evaluated the workability of Self-Consolidating Repair Mortar (SCRM) using two specific tests: the v-funnel flow test (depicted in Fig. 2a) and the mini slump flow test (Fig. 2b). The tests were performed following the guidelines set by EFNARC [34].

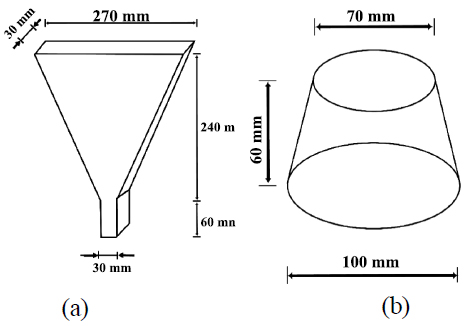

The mini-slump flow test apparatus featured specific dimensions, including a bottom diameter of 100 mm, a top diameter of 70 mm, and a height of 60 mm. For the test, fresh mortar was filled into this cone, which was positioned at the center of a marked glass plate. When the cone was lifted vertically, the spread diameter of the mortar was measured and calculated as the average of two perpendicular dimensions.

In the V-funnel flow test, the procedure began by pouring the mortar completely into the funnel. Once filled, the bottom outlet was opened to let the mortar flow out. The time taken from the start of the flow to when the mortar began to exit from the bottom outlet was recorded and denoted as “t,” representing the V-funnel flow time. It is worth noting that in accordance with EFNARC acceptance criteria, the workability values for SCMs were expected to fall within the range of 240-260 mm for slump-flow diameter and 7-11 seconds for V-funnel flow time.

3.2. Compressive and Flexural Strengths

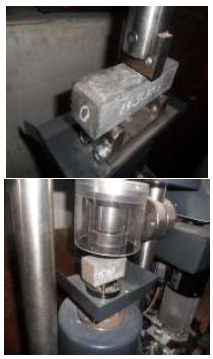

Moreover, to evaluate the flexural and compressive strengths, prism specimens of dimensions 40×40×160 mm³ were prepared for each mortar mixture, adhering to the procedures specified in EN 12190-5 [35]. These assessments were performed at four different time intervals: 2, 7, 28, and 90 days. For accuracy, the flexural strength results were derived by averaging values obtained from three flexural samples, and the compressive strength results were calculated from six compression samples (Fig. 3).

3.3. Elastic Modulus

In addition to strength evaluations, the elastic modulus was also determined in accordance with the EN-12504-4 [36]. This involved the preparation of cylindrical specimens, each having dimensions of 40 mm in diameter and 80 mm in length, were created. Following a period of 24 hours from the initial casting, all the molds have been unmolded. The specimens were then immersed in water until they reached their designated testing ages, which were 2, 7, 28, and 90 days. After this period, to precisely measure their density, the specimens were subjected to a 24-hour oven-drying process at a temperature of 105°C. The propagation velocity of ultrasonic waves through these specimens, which is influenced by their density, was determined using an ultrasonic testing method.

The disposition of the transducers within the specimen using the direct transmission method is illustrated in Fig. (4). Additionally, to ensure precise ultrasonic results, a flat surface was achieved by employing a smooth diamond saw to create a bonded plane.

The dynamic elastic modulus (ED) can be calculated using Eq. (1) as follows:

(1)

Here:

• E_D represents the elastic modulus in GPa.

• ρ denotes the density of the dry specimens in

kg/m³.

• V stands for the sound speed in km/s.

3.4. Absorption

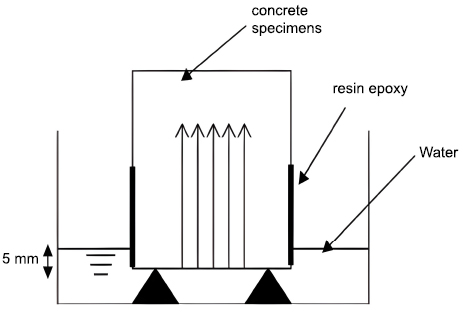

The absorption test was used in this investigation in accordance with EN 1015-18 [37]. Half-prism specimens measuring 40×40×80 mm3 were prepared to access the capillary absorption coefficient after 28 days. Following a 28-day curing period, the specimens were subjected to a 24-hour oven-drying process at a temperature of 105°C to ascertain their dry mass (W). Afterward, all surfaces of the specimens, excluding their top and bottom sides, were coated with epoxy resin. This sealing was done in a manner that allowed water penetration in only one direction, as visually demonstrated in Fig. (5).

3.5. Shrinkage

Furthermore, to assess drying shrinkage, we utilized three prism specimens, each containing embedded copper heads at their two longer ends in accordance with EN 12617-4 [38]. Initially, these specimens were placed in molds and wrapped with plastic paper for one day during the curing process. Following this initial curing period, the samples were carefully extracted and sealed with adhesive bands at both ends to minimize water evaporation. Subsequently, these specimens were stored in our laboratory under controlled conditions, maintaining a temperature of 23°C and a relative humidity (RH) of 55%.

For precise shrinkage measurements, we employed a shrinkage measurement frame equipped with a micrometer precision comparator. It is worth noting that autogenous shrinkage, caused by the cement hydration process, results in reduced relative humidity within the pores of the specimens. When curing is conducted in an open environment, the movement of water through these pores to the surface, combined with water loss from the surface due to evaporation, leads to additional shrinkage.

Positioning of the specimen within the measuring frame is visually depicted in Fig. (6). Shrinkage strain measurements were carried out for all mixtures up to a duration of 90 days.

3.6. Flexural Bond Strength

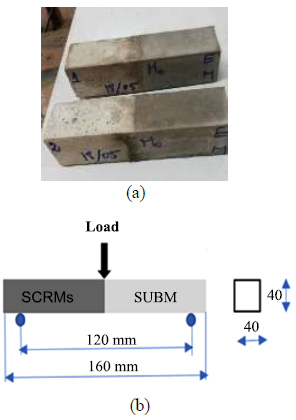

The bond strength between the repair materials (Self- Compacting Repair Mortars, SCRMs) and the substrate mortar (SUBM) was assessed using a three-point bending test. This test was conducted in accordance with the ASTM C78 [39] guidelines. In this test, composite specimens, consisting of SCRMs and SUBM, were prepared. Each specimen was composed of two prism halves, each measuring 40×40×80 mm³. One half was constructed using SCRMs and was securely bonded to the other half using SUBM, as visually depicted in Fig. (7a).

The substrate portion of the specimen was cast within metallic molds and subjected to a 28-day curing process in water, maintained at a controlled temperature of 20±2 °C. In addition, to ensure a robust adhesion of the repair material, the surface of the substrate mortar (40×40 mm²) was carefully prepared by brushing.

Before casting the SCRMs, the interfaces between the substrate and repair materials were immersed in water for a period exceeding 6 hours. Upon reaching 28 days of age, the repair mortars were cast onto the peak of the substrate. During the testing procedure, each composite specimen was positioned centrally between two plates of the testing apparatus, and a load was applied at a constant rate of 0.5 kN/s until the point of failure, as illustrated in Fig. (7b).

Additionally, the compatibility between the SCRMs and the SUBM was evaluated based on the failure mode exhibited by the composite samples. If the fracture occurred along the interface between the repair material and the substrate, it was classified as an incompatible failure (adhesive failure). Conversely, if the failure occurred within the repair material itself (cohesive failure), it indicated that the repair material was compatible with the substrate mortar. The bonding strength between the existing and new materials plays a pivotal role in determining the quality of the repair material.

4.1. Deformability Test for Fresh Mortar

Table 4 presents the Mini-slump and mini-funnel values corresponding to the various SCRMs mixtures.

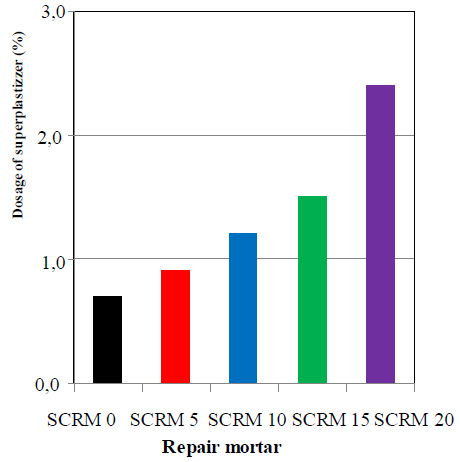

The optimum dosage, commonly known as the saturation dosage of superplasticizer, is the dosage at which there is no further increase or alteration in the spread of the slump flow of the mixtures. Fig. (8) provides a visual representation of the varying superplasticizer dosage levels.

It should be noted that the addition of SF to the mortar results in lower performance compared to the control mixture SCRM0 in terms of fresh characteristics. The greater surface area and reduced particle size of Silica Fume (SF) resulted in an increased demand for water in the mortar mix, resulting in reduced workability of the fresh mortar. Additionally, to maintain a consistent slump flow for all repair mortars (SCRMs), it was necessary to increase the dosage of superplasticizer. Table 4 displays the slump flow diameters for all mixtures, falling within the range of 240 to 270 mm. According to EFNARC guidelines, a diameter between 240 and 260 mm is considered acceptable [34]. Yaseri et al. [40] recommended a mini-slump range of 220-280 mm, and for this study, the acceptable mini-slump flow was determined to be within the range of 240–270 mm. Consequently, a superplasticizer had to be added to enhance workability. Increasing the superplasticizer dosage resulted in an 80% convergence of the mini-slump flow toward the specified threshold.

As indicated in Table 4, the flow time values for all SCRMs mixtures ranged from 4.26s to 5.32s. The incorporation of SF content resulted in diminished workability of the fresh repair mortar, thereby requiring the addition of a superplasticizer to enhance its workability. The results revealed that Fiber-Reinforced Mortars (FS) decreased the fluidity of SCRM mixtures, with the most significant impact observed at a dosage of 20%. This finding aligns with the conclusions drawn by Erdogdu et al. [41]. Additionally, the presence of SF increased the superplasticizer requirement in mortars [42]. The expansive surface area of SF particles led to heightened adsorption of the superplasticizer. This phenomenon reduced the superplasticizer's presence in the solution surrounding cement particles, subsequently impacting the fluidity of the cementitious mixtures [43]. This aligns with the results documented in previous studies [44, 45]. Furthermore, a pronounced linear relationship was observed between the mini V-funnel spread and the mini-slump spread, as depicted in Fig. (9). Notably, when the mini-slump spread ranged from 240-280 mm, the corresponding mini V-funnel time was observed to be between 4 to 6 seconds.

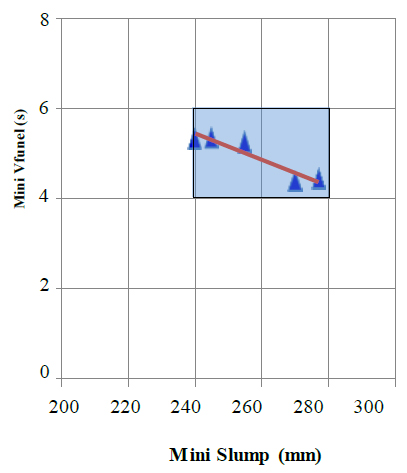

In theory, the workability of fresh cementitious pastes can be characterized by the values derived from both the slump flow and mini V-funnel test results. As a result, it can be noted or concluded that the filling results can be used to predict the workability of SCRM and that there is a connection between the filling capacity and the workability of SCRM.

4.2. Compressive and Flexural Strengths

Data on the flexural and compressive strengths are presented in Table 5. Figs. (10 and 11) showcase the flexural and compressive strengths of Self-Consolidating Repair Mortar (SCRM) mixtures, incorporating varying Ferrosilicon (FS) content levels of 5%, 10%, 15%, and 20%, measured at intervals of 2, 7, 28, and 90 days.

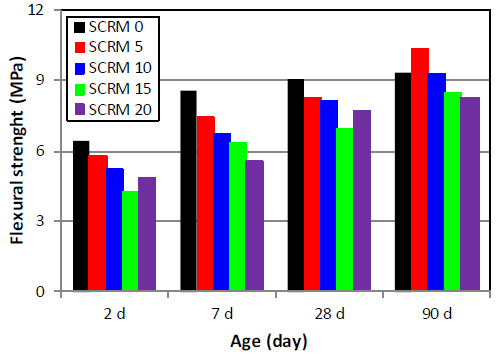

Fig. (10) displays the flexural strength of repair mortars (SCRMs) mixtures with different FS contents of 5%, 10%, 15%, and 20% at testing intervals of 2, 7, 28, and 90 days.

Conversely, at the 90-day interval, SCRM5 demonstrated the highest compressive strength, followed by SCRM10, and then SCRM0. The compressive strengths of SCRM5 and SCRM10 were closely matched (73.9 MPa for SCRM5 and 72.4 MPa for SCRM10). This trend is primarily attributed to the pozzolanic reaction, which contributes to a denser microstructure within the mix, thus enhancing the compressive strength over a longer period.

This demonstrates that the SF dosage increased pozzolanic activity, resulting in enhanced hydration and compressive strength at late ages.

At 28 days, all SCRMs displayed compressive strengths comparable to that of SCRM0, except for the SCRM15 mixture.

The information depicted in Fig. (10) indicates an increase in the flexural strength of Self-Consolidating Repair Mortars (SCRMs) over time. However, there was a notable decrease in flexural strength with higher Silica Fume (SF) content. Specifically, the control mixture (SCRM0) demonstrated greater flexural strength at 28 days compared to other SCRM mixtures. Furthermore, between 28 to 90 days of curing, SCRM5 and SCRM10 showed an increase in flexural strength by 25.5% and 14.4%, respectively.

It should be noted that the ideal proportion of superplasticizer to SF for achieving self-compacting mixes is typically around 1% of the binder weight and 10% of the weight of the binder, respectively. This combination serves to reduce porosity while enhancing strength. Furthermore, the incorporation of SF and superplasticizer enhances the pozzolanic reaction at 28 days. Additionally, the development of a denser microstructure in the mortar, with reduced porosity, can lead to increased strength and enhanced durability.

Early strength development in cementitious systems is generally less affected by SF. SF, being a pozzolanic substance, primarily contributes to long-term strength characteristics while potentially reducing flexural strength at an early age. Importantly, in the initial stages of strength development, fiber-reinforced concrete typically exhibits lower compressive and flexural strengths relative to standard concrete.

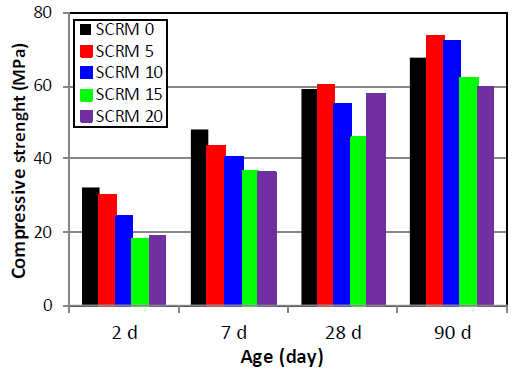

As for Fig. (11), it shows that the development of compressive strengths follows a similar pattern to that of flexural strengths. At early ages (2 days of curing), (SF) was found to adversely affect the compressive strength of SCRMs, with all SCRMs showing reduced compressive strength compared to SCRM0. For instance, at the 7-day mark, there were observed decreases in compressive strength by 9.2%, 15.6%, 23.8%, and 24.2% for SCRM5, SCRM10, SCRM15, and SCRM20, respectively, relative to SCRM0. This reduction is largely due to the dilution effect caused by SF.

Numerous studies have noted that the impact of silica fume (SF) on strength development in mortar is more pronounced after the first 7 days [45-48]. Initially, an increase in SF content up to a certain threshold tends to enhance the compressive strength of the mortar. However, exceeding this threshold leads to a decline in strength as the SF content increases further [49]. It has been discovered in other research that the addition of silica fume to water does not directly participate in the hydration reactions of cement. Rather, it interacts with the Ca(OH)₂ produced during the hydration process, forming hydrated calcium silicates (C-S-H gel). This process effectively improves the microstructure of the cementitious matrix once it has hardened, resulting in a more compact and dense structure, which is beneficial for early strength development and contributes to the improved strength and durability of the mortar over time [50].

Optimal concrete strength at 28 days is achieved with a superplasticizer (SP) concentration between 1.0-1.2% and an SF content of 10-15% by binder weight. Furthermore, the use of 15% SF as a replacement enhances the concrete's durability and strength, as demonstrated in Fig. (9). This enhancement is likely due to SF's high pozzolanic activity, stemming from its significant amorphous SiO₂ content.

These findings align with those reported by other researchers [51, 52].

However, compressive and flexural strength development increases even more after 28 days for SCRMs mixes with 5-10% SF replacement and continues at a later time due to the pozzolanic reaction.

The correlation between compressive and flexural strengths, as outlined by various researchers, can be summarized in a different way:

(2)

Where f_c represents compressive strength in MPa and f_t is flexural strength in MPa. The correlation between compressive and flexural strength findings proposed in this study, represented by Eq. (3), was used to model the correlation among compressive and flexural strength for SCRMs mixtures.

Coefficients k and α were obtained through nonlinear regression analysis using the test results, which were considered as the main variables. The values obtained were k and α by nonlinear regression analysis are 0.872 and 0.55, respectively. The corresponding strong correlation coefficient R²= 0,930 can be expressed as follows:

(3)

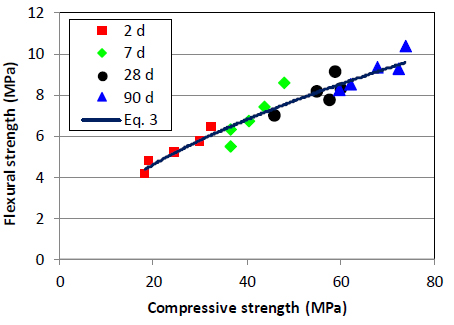

Eq. (3), shown in Fig. (12), can be used to estimate and predict the bending strength from the corresponding compressive strength value, with high reliability.

4.3. Elastic Modulus

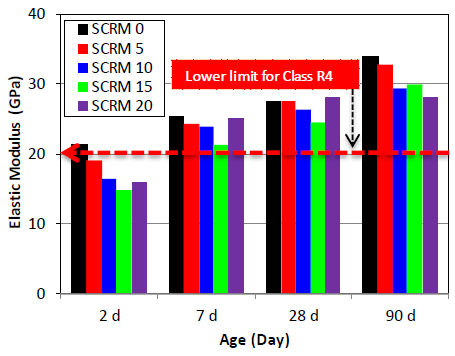

Elasticity modulus for repair mortar was assessed at intervals of 2, 7, 28, and 90 days, utilizing cylindrical specimens, as demonstrated in Fig. (13).

The dynamic elastic modulus of SCRMs mixtures, which characterizes the material's stiffness, is an essential material characteristic and plays a pivotal role in engineering design and the development of materials.

Measurements showed that the elastic modulus varied from 28.01 to 33.76 GPa at 90 days. Clearly, employing high-volume Silica Fume (SF) led to a decrease in the dynamic modulus of elasticity compared to SCRM0, which showed the highest modulus. On the other hand, the elastic modulus of all Self-Consolidating Repair Mortar (SCRM) mixtures exhibited an increase over time, particularly noticeable after 90 days of curing. For example, during the extension of the curing period from 28 to 90 days, the elastic modulus of SCRM0 and SCRM15 increased by 24% and 22%, respectively. These findings generally align with those reported in prior studies [53, 54]

Various models and correlations have been suggested in the literature to estimate the modulus of elasticity of concrete, predominantly based on the concrete's compressive strength.

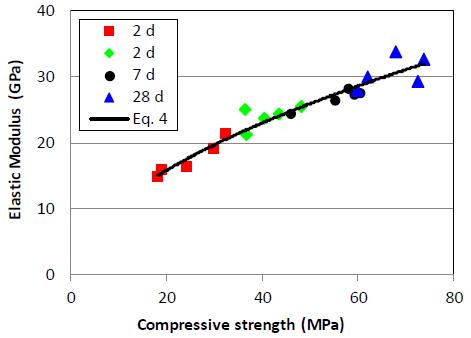

This study has formulated an empirical correlation between the modulus of elasticity and compressive strength, which can be expressed as follows:

(4)

Here, f_C is the compressive strength in MPa and E_C is the elastic modulus in GPa.

Eq. (4) demonstrates a strong correlation between elastic modulus and compressive strength, as evidenced by a coefficient of determination (R²) exceeding 0.92. Fig. (14) further shows a remarkable correlation between the compressive strength and the modulus of elasticity.

4.4. Water Absorption

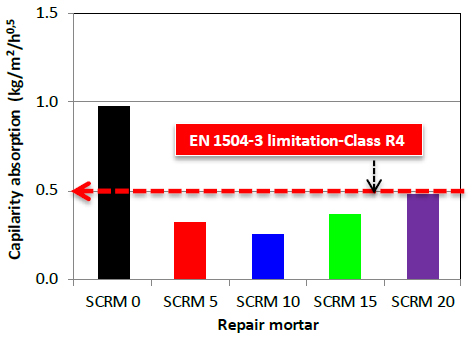

Fig. (15) presents the capillary absorption coefficients for different Silica Fume (SF) concentrations at 28 days, examining sorptivity, which evaluates a porous material's capacity for water absorption and transmission through capillary action, to gauge the durability characteristics.

The graph in Fig. (15) indicates a reduction in the capillary absorption coefficient with an increase in SF content up to 10%. For instance, the coefficient for SCRM5 was 60% lower than that of SCRM0. Conversely, this coefficient substantially rose when SF levels exceeded 10%, reaching 20%.

These findings suggest that SF integration diminishes surface pores and imperfections in the mortar relative to the standard repair mortar (SCRM0), implying that a rise in SF content up to 20% diminishes SCRMs mortar's porosity. At 10% SF concentration, the capillary absorption coefficient dropped to 0.27 (kg/m²·h^0.5), marking a 71% decrease from SCRM0. Thus, SF addition effectively lowers water absorption in the repair mortar.

Indeed, the capillary absorption coefficient for all repair mortars SCRMs that range between 0.27 and 0.46 kg/m²h^0,5 satisfy the requirements (less than 0.5 kg/m².h^0.5) for building materials designed for use in Class R4 structural applications. The following reasons can explain these results. Firstly, the potent pozzolanic activity of Silica Fume (SF) is instrumental in compacting the microstructure of Self-Consolidating Repair Mortars (SCRMs), thereby lessening their porosity via the generation of calcium-silicate-hydrates (C-S-H). Secondly, the comparatively larger specific surface area of SF, in relation to cement, contributes to a decrease in water absorption by further compacting the mortar matrix.

Practically, this suggests that the addition of SF particles primarily serves to occupy the spaces among the hydrated cement particles, leading to enhanced compressive strength and a reduction in water absorption. Notably, the control mix SCRM0 demonstrated the highest capillary absorption coefficient. In contrast, all SF-inclusive SCRMs showed markedly lower capillary absorption coefficients compared to SCRM0. These observations are in line with findings from various other studies [43, 55, 56].

4.5. Drying Shrinkage

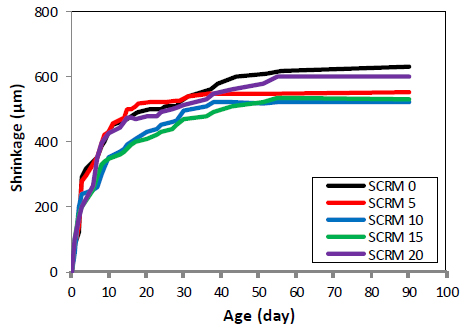

Fig. (16) displays the drying shrinkage data for all Self-Consolidating Repair Mortar (SCRM) mixtures over a period of 90 days. The figure reveals that increasing Silica Fume (SF) content to 10% leads to a reduction in the drying shrinkage of SCRMs at 90 days. For instance, SCRM10 showed a 33% decrease in 90-day drying shrinkage compared to SCRM0. However, it is important to recognize that using more than 10% SF in the mix might cause the specimens to expand.

Previous studies have consistently found that SF usage tends to diminish the drying shrinkage of repair mortars. This effect can be attributed to several factors. Firstly, the addition of pozzolanic materials lowers the amount of cement needed, which in turn reduces the heat of hydration and, consequently, the shrinkage of the mortar mixes [57, 58].

Secondly, after sufficient curing, the shrinkage of SCRMs containing SF generally decreases due to the pozzolanic reaction, which generates extra C-S-H gels, thereby making the matrix denser and slowing the rate of water loss. Thirdly, the use of SF contributes to shrinking reduction by decreasing the diameter and connectivity of pores, a process partly influenced by SF's reinforcing properties.

In summary, these findings suggest that mortars containing pozzolanic materials exhibit lower drying shrinkage than control mixes under air-cured conditions.

4.6. Flexural Bond Strength

Table 6 provides insights into how SF influences the adhesion of composite samples (SCRM/SUBM) under normal water curing conditions. Raising SF content positively influences the bonding interaction between mortar substrates and the repair mortar. Compared to the control mix, substituting cement with 10%, 15%, and 20% Ferrosilicon (FS) resulted in a notable enhancement in the flexural bond strength of (SCRM) specimens. Specifically, this substitution led to improvements in bond strength by 149%, 133%, and 111% for 10%, 15%, and 20% FS replacements, respectively. The highest value, 8.14 MPa, was achieved by SCRM10. Additionally, the results of the 28-day bonding process indicated that composite samples can be generally categorized into two failure types.

Table 6.

Repair Mortars (SCRMs)	Bond Flexural Strength (MPa)	Failure Mode
SCRM 0	3,27
SCRM 5	6,01
SCRM10	8,14
SCRM 15	7,63
SCRM 20	6,90

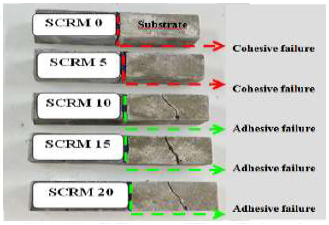

In specific terms, the failures occurred in the substrate of the composites SCRM10/SUBM, SCRM15/SUBM, and SCRM20/SUBM, which indicates a strong bond between SCRM mortar and SUBM. In contrast, at 0% and 5% FS content, the interface cracked, and the repair mortar completely separated from the support (resulting in cohesive failure). The interfacial transition zone, which is the boundary between the old mortar and new repair materials, can be enhanced by the inclusion of Polypropylene Fiber (PPF) [59]. It is also important to mention that in the restoration of concrete structures, the tensile bond strength of the repair materials should ideally surpass 2.1 MPa [60].

On the other hand, A-lite (C₃S), B-lite (C₂S), and ferrite (C₄AF) are the three primary components of cement, and their hydration accelerates these positive effects. Following the cement hydration process, the free alkali, primarily in the form of calcium hydroxide (Ca(OH)₂), reacts with the silica component in Silica Fume (SF), a process that is facilitated by the presence of water. This reaction results in the formation of calcium silicate hydrate (C-S-H), contributing to a decrease in capillary porosity while simultaneously reducing the calcium hydroxide content within the matrix [61]. Silica Fume's larger surface area, which enhances its reactivity, effectively fills voids in both interfacial and interfacial transition zones, leading to a denser and more uniform structure. Furthermore, the robust bond between Self-Consolidating Repair Mortars (SCRMs) and substrate mortars (SUBMs) helps to prevent crack propagation in the transition zone [62].

It is important to recognize that variables such as the nature of the bonding agent, the cleanliness and moisture level of the substrate surface, and the roughness of the interface can significantly affect adhesion at the interface [63]. In line with these findings, adding Silica Fume (SF) to the mortar not only improves the mechanical characteristics of the interfacial transition zones but also strengthens the bond between the repair mortar and the substrate, leading to a more robust bond [62].

The addition of SF enhances the internal pore structure and compactness of the mortar, which in turn significantly boosts its durability. This increased durability plays a crucial role in reducing mortar degradation in harsh environments, thereby extending their service life [64].
